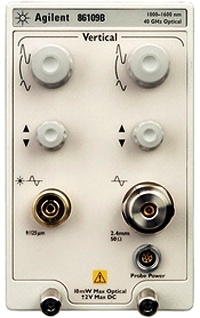

Agilent 86109B Optical Measurement Channel
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Agilent 86109B is a 1000 to 1600 nm (9/125 m, user selectable) Plug-in for 86100 Infiniium DCA. Module incorporates a 40 GHz optical measurement channel and a 50 GHz electrical channel. The electrical channel also has a reduced bandwidth setting of 26.5 GHz for improved noise performance. The optical channel frequency response is designed to minimize distortion of the displayed optical pulse and does not include any provision for switching a SDH/SONET filter into the channel.
Specifications:
– Channel configuration: 2 channels
– Wavelength range: 600 nm to 1700 nm
– Wavelength accuracy: ±0.5 nm
– Wavelength resolution: 0.01 nm
– Input power range: -15 dBm to +10 dBm
– Input power accuracy: ±0.3 dB
– Input power resolution: 0.01 dB
– Maximum input power damage level: +13 dBm
– Optical receiver bandwidth: 100 kHz to 65 GHz
– Optical receiver sensitivity: -10 dBm
– Optical modulation analyzer bandwidth: 63.3 GHz
– Optical modulation analyzer sensitivity: -10 dBm
– Optical modulation analyzer dynamic range: 20 dB
– Optical modulation analyzer rise time: <5.5 ps
– Optical modulation analyzer fall time: <5.5 ps
– Optical modulation analyzer jitter: <0.35 ps rms
Agilent 86109B also available with the following specs and models:
- Module – 40GHz Optical / 50GHz Electrical – 1000-1600nm – SMF ONLY
