Metrel MI 3210 HV Insulation Tester
Metrel MI 3210 HV Insulation Tester
Metrel MI 3210 HV Insulation Tester

Metrel MI 3210 HV Insulation Tester

Inquire for pricing

MI 3210 TeraOhm XA 10 kV is a portable, battery or mains powered test instrument with excellent IP protection (IP65), intended for diagnosing of Insulation Resistance by using high DC test voltages of up to 10 kV. Because of its robustness (CAT IV protection) and high immunity to radiated RF fields it is best suited for industrial environment.

Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.

SKU MetrelMI 3210 Category Manufacturer Model Number

Metrel MI 3210 HV Insulation Tester

Request A Quote

If you have any inquiries, recommendations, or simply wish to connect with us, we’d love to hear from you! Please don’t hesitate to reach out to us.

If you have a specific inquiry for an equipment you can start from Equipment Quote Request Form


"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Address*
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
Accepted file types: jpg, gif, png, pdf, csv, doc, docx, xls, xlsx, Max. file size: 20 MB.
Description

The Metrel MI 3210 HV Insulation Tester is a high-voltage insulation testing instrument designed for evaluating the insulation resistance of electrical systems and components. This robust tester is essential for ensuring the safety and reliability of electrical installations by providing accurate measurements of insulation resistance at various high voltage levels. The MI 3210 features a user-friendly interface with a clear, backlit LCD display that presents test results and measurement data in a readable format. It offers multiple test voltage ranges, including up to 5 kV, allowing for versatile testing across different insulation materials and system voltages. Key functions include insulation resistance measurement, polarization index (PI), dielectric absorption ratio (DAR), and automatic test sequence capabilities. The tester is built to withstand harsh field conditions, ensuring durability and reliability. Advanced features such as data storage, analysis, and connectivity options support comprehensive testing and documentation.

Specifications

  • Model: MI 3210 HV Insulation Tester
  • Test Voltage Ranges: 250 V, 500 V, 1000 V, 2500 V, 5000 V
  • Insulation Resistance Range: Up to 20 TΩ (depending on test voltage)
  • Measurement Accuracy: ±5% of reading ±2 digits
  • Test Voltage Accuracy: ±2% of set value
  • Polarization Index (PI) Measurement: Yes
  • Dielectric Absorption Ratio (DAR) Measurement: Yes
  • Automatic Test Sequences: Yes, with user-configurable settings
  • Display: Backlit LCD
  • Data Storage: Internal memory for storing test results
  • Connectivity: USB, possibly Bluetooth (varies by model) for data transfer
  • Battery Type: Rechargeable battery with long operation time
  • Dimensions: Approx. 250 x 200 x 100 mm (varies by model)
  • Weight: Approximately 1.5 kg (including battery)
  • Safety Ratings: Designed for high-voltage testing with appropriate safety features
  • Additional Features: Data analysis software compatibility, auto power-off, low battery indicator, rugged design for field use
Main Features
Voltage DC
Voltage DC
Voltage AC
Voltage TRMS
Other DMM measurements
Capacitance
Insulation Resistance
Test Voltage 50 V
Test Voltage 100 V
Test Voltage 250 V
Test Voltage 325 V
Test Voltage 500 V
Test Voltage 1000 V
Test Voltage 2500 V
Test Voltage 5000 V
Test Voltage 10000 V
Max resistance range 20 TOhm
Calculation of PI
Calculation of DAR
Calculation of DD
Graph R(t)
Test voltage display
Adjustable Test Time
DC Ramp Voltage Test/Varistor test
Step Voltage TEST
Automatic Discharge
Leakage Current
DC Insulation Leakage
Additional Features
PASS / FAIL Indicators
PASS/FAIL Indicators
Low Pass filter
Noise immunity filter
Display
Back Light
Power Supply
Rechargeable Batteries in standard delivery
Battery Powered
Graphical user interface
Bar Graph
Communication Port
Communication Port USB
Communication Port RS232 – PS/2
Built-in Bluetooth
Built-in Bluetooth
Memory
Internal memory
Downloadable
IP protection
IP 65
Protection category
CAT IV 600 V
Special Accessories
PC Software Package
PC Software Package
Battery Charger
Battery Charger
Electrical Energetics
Power generation
Earthing and lightning protection in thermal energy power plants
Renewable energy sources
Generator stator testing
STC values and performance of PV panels
Lightning protection testing in wind plants
Power distribution

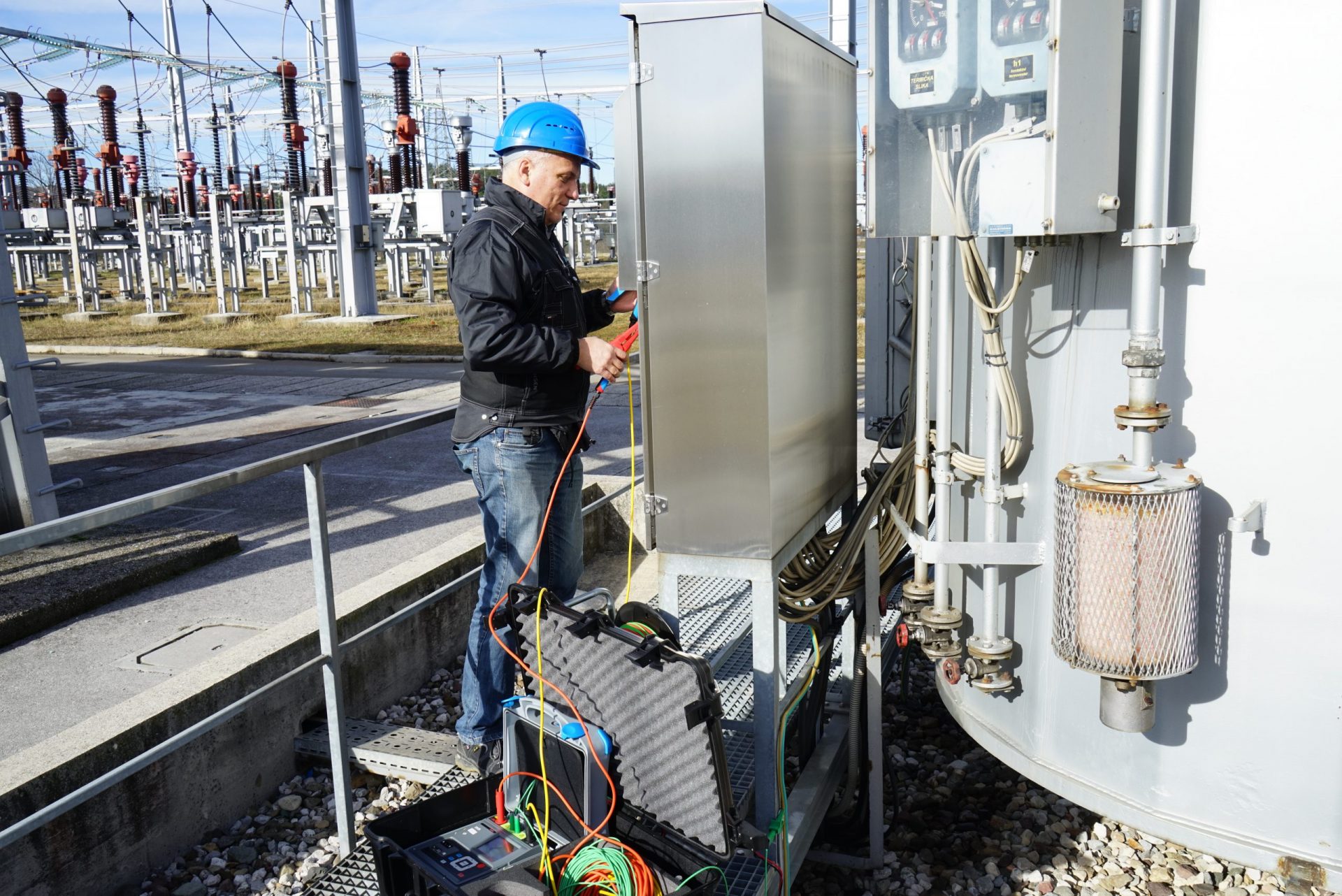

Insulation resistance measurement of transformer’s windings
Standards Applied
Building LV Installation
IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – series
IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – Part 2: Insulation resistance
