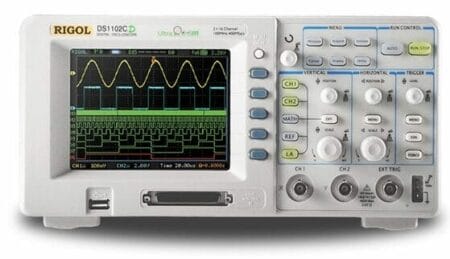

Rigol Ds1102Cd 100 Mhz Digital Oscilloscope , 2 Ch + 16 Ch Logic Analyzer
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
Description
The Rigol DS1102CD is a versatile digital oscilloscope that integrates advanced features for precise signal analysis across a wide frequency range. With a bandwidth of 100 MHz and dual-channel capability, it offers high-resolution waveform capture and detailed analysis of complex signals in various applications such as research, development, and educational settings. Additionally, the DS1102CD features a 16-channel logic analyzer, enhancing its functionality by allowing simultaneous digital and analog signal monitoring and correlation. This makes it particularly valuable for debugging and verifying digital circuitry alongside analog measurements. The oscilloscope’s intuitive user interface, coupled with a large, clear display, facilitates efficient operation and data interpretation. Equipped with multiple trigger modes, extensive measurement capabilities, and USB connectivity for data storage and remote control, the Rigol DS1102CD is an essential tool for engineers and technicians seeking comprehensive solutions for electronic testing and measurement challenges.
Specifications
– Model: Rigol DS1102CD
– Type: Digital Oscilloscope with Logic Analyzer
– Bandwidth: 100 MHz
– Channels: 2 analog channels + 16 logic analyzer channels
– Sample Rate: 1 GSa/s (analog channels), 500 MSa/s (logic analyzer channels)
– Memory Depth: 1 Mpts (analog channels), 14 Mpts (logic analyzer channels)
– Vertical Resolution: 8 bits
– Display: 7-inch TFT LCD color display
– Waveform Capture Rate: up to 60,000 wfms/s
– Trigger Types: Edge, Pulse Width, Video, Slope, Pattern, Duration, Runt, Setup/Hold, Nth Edge, Window, Dropout, Timeout, Delay
– Input Impedance: 1 MΩ ± 2% || 15 pF ± 5 pF
– Max Input Voltage: 300 Vrms, CAT II
– Connectivity: USB Host, USB Device, LAN, AUX Out, Pass/Fail, Trig Out
– Dimensions: 312 mm x 152 mm x 122 mm
– Weight: 2.9 kg
